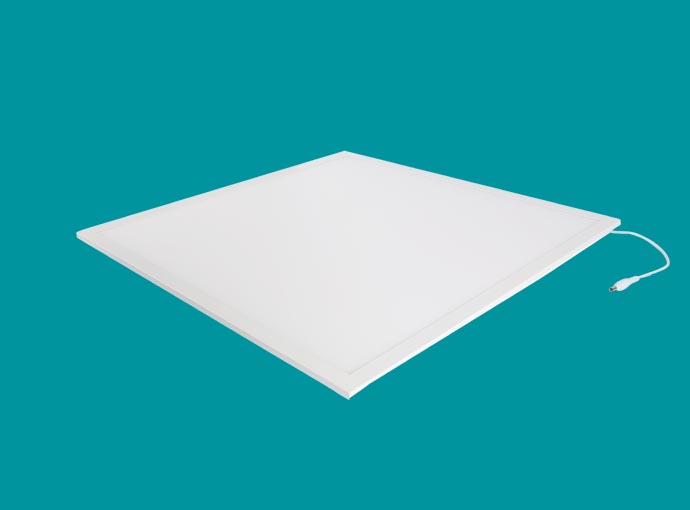

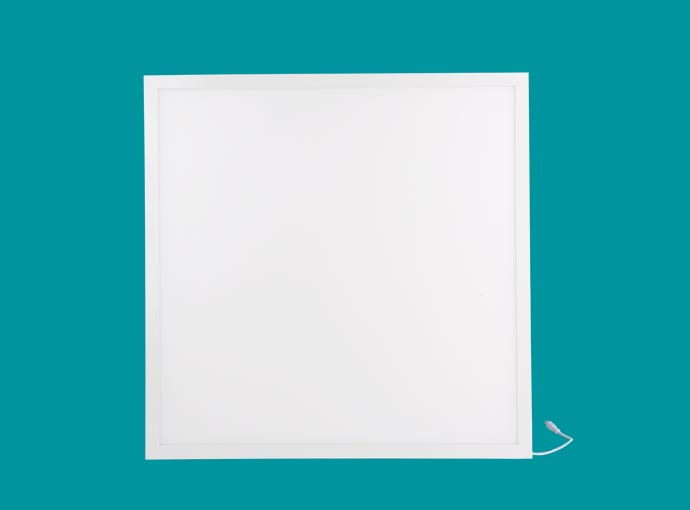

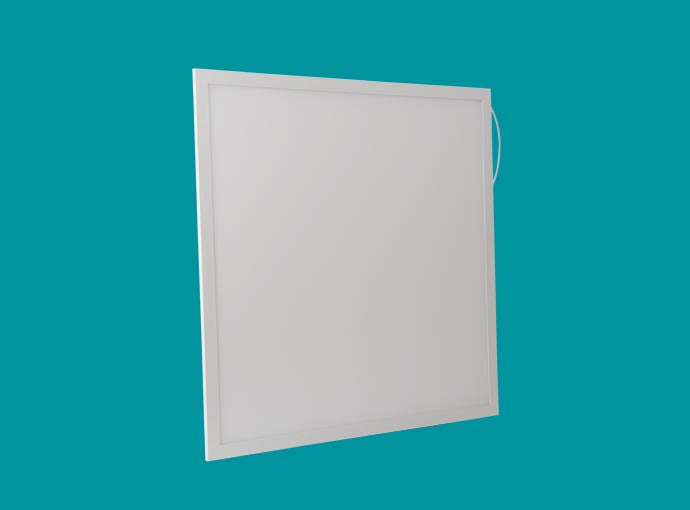

603X603 LED Panel Light

GS-P2X2-30/40

Features:



1. Even light distribution

2. LM80-rated-chips ensure color uniformity

3. Dimmable

4. Cool operation

5. Environmental friendly

6. Quality 6063 aluminum frame provide good heat dissipation

7. 50,000 hours life


Inquiry
Specification

Datasheet:





Model GS-P2X2-30 GS-P2X2-40 GS-P2X2-30
Dimension 603X603mm
Power 30W 40W 40W
Lumen 3750lm 4000lm 5000lm
Lumen Efficiency 125lm/w 100lm/w 125lm/w
LEDs Samsung 2835
 4014
 Samsung 2835
CCT 3500K / 4100K / 5000K
CRI >80Ra
Input Voltage  120-277V / 50/60Hz
Power Factor >0.9
Dimmable Designed to be compatible with most 0-10V
Warranty 5 Years
Frame Color White RAL9016
Installtion Way Recessed / Suspension / Hanging Installation
Working Temp. -20℃ - 50℃







Package:



Model                  Qty/CTN  CTN Size Net.W Gross.W Qty/20GP'        Qty/40GP'
GS-P2x2 4 pcs 67X27X68cm  19kg 22kg 1300pcs 2700pcs





Application:



The LED panel light is applicable for office, school, supermarket, warehouse,etc.
